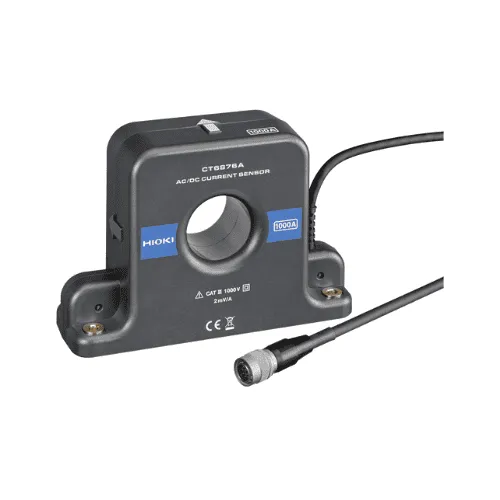

HIOKI CT 9876A AC/DC Current Sensor

SKU: HIOKI CT 6876A Categories AC/DC Current Sensor, All Collection Brand: HIOKI

Key Feature:

The ideal current sensor for measuring large 1000 A currents in EV, HEV, and PHEV
Strengthened shield improves noise resistance to accurately measure current buried in noise
Flat frequency characteristics and CMRR performance to achieve high accuracy measurement
More enhanced environmental resistance performance than ever before with operating temperature range of -40 to 85°C
Basic accuracy of ±0.04% and phase ± 0.1°
Good frequency characteristics over wide band of DC to 1.5 MHz (amplitude) and DC to 1 MHz (phase)
Ideal for advanced fields such as photovoltaics and fuel cells to evaluate the charge / discharge of batteries and secondary side of inverters
Connect with oscilloscopes or Hioki Memory HiCorders (using SENSOR UNIT) to monitor waveforms

Ask for price

Discount Badge Auto

exclusive of GST

Product Overview
Reviews (0)

Description

Hioki’s pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.
The CT6876A has a frequency bandwidth of DC to 1.5 MHz (Model CT6876A-1 is DC to 1.2 MHz) and a rated current of 1000 A. It is used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs.

Use with an instrument with a high input impedance of 1 MΩ or higher.
