HIOKI IR5050 Insulation Tester
HIOKI IR5050 Insulation Tester
SKU: HIOKI IR5050 Categories , , Brand:

Key Feature:

  • Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
  • Wide testing voltage range, up to 5000 V from 250 V DC
  • Wide measurement insulation range, up to 10 TΩ
  • Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
  • Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
  • Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
  • Compact and lightweight, equipped with an IP65-rated carrying case

₹151,925.00

₹151,925.00

Discount Badge Auto

exclusive of GST

Included Accessories: Carrying Case, Test Leads, Alligator Clip, Alkaline Batteries, Operating Precautions, Instruction Manual

Calibration Certificate from an authorized NABL Accredited Lab

If you have opted for the calibration service, our team will contact you to confirm the name and address to be included on the calibration certificate. Please note that the calibration process requires approximately 2–3 working days for completion and for the certificate to be issued by the laboratory.

Product price: ₹151,925.00
Total options:
Order total:
Get a Formal Quote

Description

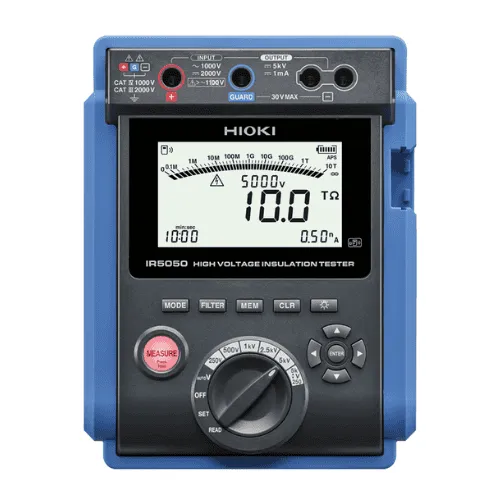

The IR5050 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ.

Ideal for high-voltage insulation resistance testing
Best suited for high-voltage insulation resistance testing, the IR5050 is equipped with advanced measurement technology that guarantees stable readings across a range of applications, including high-voltage cables, transformers, and motors. It also features an intuitive rotary knob for straightforward operation, enhancing its versatility and user-friendliness for diverse industrial uses.
Advanced insulation diagnostic features
The IR5050 offers specialized insulation diagnostic functions such as step and ramp voltage testing. It automatically displays results in indices like PI (Polarization Index), DAR (Dielectric Absorption Ratio), and DD (Dielectric Discharge), streamlining the diagnostic process.
Streamlined data management and reporting
Enhancing efficiency, the IR5050 comes with data memory, and options for wireless and USB connectivity. It facilitates real-time graph trending on mobile devices and enables quick report generation, simplifying data handling and documentation.
