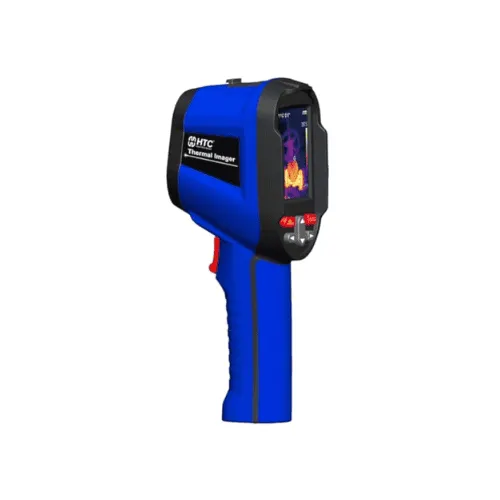

HTC VT-108 Thermal Imager

Key Feature:

  • Infrared & Thermal image & visible image can be switched.
  • Win XP, Win7, Win8, Win10, Apple Systems compatible.
  • Image registration helps users to understand infrared image captured.
  • High / Low temperature can be set
  • WI-FI feature is integrated into the product.
  • Infrared camera integrates surface temperature measurement and real-time thermal image.
  • Non-contact detection technology, carries out real time detection at high voltage, high current, high speed without attaching operator.
  • Visible light camera to Increase differentiation
  • 2.8 TFT color LCD display.
  • Adjustable emissivity and reflected background compensation to ensure measurement accuracy
  • Built in 3GB storage, 4G eMMC
  • Multi linguistic : Menu language options English / Italian / German / Russian / Japanese / Chinese
  • Image & Video capture, with memory, USB support, analysis on PC offline.
  • Visuals & heat map image alignment.
  • 5 Color palates selection, for color contrast between high & low temp.
  • Switch temp reading ºC / ºF
  • Integrates surface temp measurement & real-time thermal image.
  • Central point measurement cursor to locate & accurately measure the temp of target object.
  • Radiation co-efficient may be adjusted to improve accuracy of half reflection surface.
  • Type-C power interface.

25,345.00

25,345.00

Discount Badge Auto

exclusive of GST

Calibration Certificate from an authorized NABL Accredited Lab

If you have opted for the calibration service, our team will contact you to confirm the name and address to be included on the calibration certificate. Please note that the calibration process requires approximately 2–3 working days for completion and for the certificate to be issued by the laboratory.

Product price: 25,345.00
Total options:
Order total:

Description

The HTC VT-108 is a high-performance handheld thermal imager combining infrared and visible light imaging. It supports real-time temperature detection, image/video recording, Wi-Fi connectivity, and PC analysis. Ideal for electrical inspection, maintenance, and industrial diagnostics.

Additional information

Weight 1.500 kg
Dimensions 14.5 × 25.5 × 10 cm
