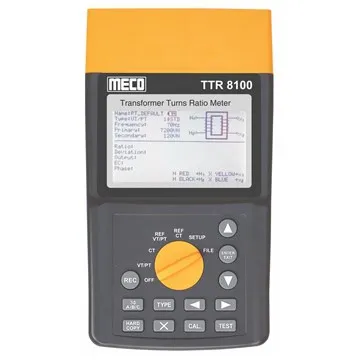

MECO TTR8100 Transformer Turns Ratio Meter

SKU: MECO TTR8100 Categories All Collection, Transformer Turns Ratio Meter Brand: MECO

Key Feature:

Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio
VT / PT Ratio 0.8 ~ 2000, Ct Ratio 0.8 ~ 2000
Graphical and Literal Illustration of Measurements and connections with Large Back – Lighted Dot Matrix 240 x 128 LCD
Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
Store 4096 Files of Transformer Nameplate Values (VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
Ten Test Frequencies (50 ~ 400 Hz)
9 Types of 3 Φ Winding Connection pre – installed
Wireless Blue Tooth Communication with PC
Select Filter to Remove Field noise (Slow, Normal, Fast)
Record with Date and Time Stamp
Powerful Lithium Battery (3400mAH) with built – in Charging Circuit
User Programmable RCF (Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
PC Application Software Included
Friendly File System for Easy On – Site Data Retrieval and Nameplate Values Management

Original price was: ₹287,640.00.Current price is: ₹189,000.00.

Discount Badge Auto

exclusive of GST

Description

Transformer is a very important element in the Electric Power Distribution System. It needs to be maintained from time to time to guarantee smooth power supply at consumer end.

MECO TTR8100 is portable instrument for accurate measurement of 1-Phase & 3-Phase Transformer VT / CT Turns Ratio, Excitation Voltage, Current, Phase Angle and Deviation. TTR8100 ensures the Correct Turn Ratio and Quality of the Transformer.

It checks live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
