METRAVI ERT-1501 Digital Earth Resistance Meter

Sale!

METRAVI ERT-1501 Digital Earth Resistance Meter

SKU: METRAVI ERT1501 Categories All Collection, Earth Resistance Tester Brand: METRAVI

Key Features

Data Hold facility
Displays test result and battery voltage on the same screen
LOCK Button for continuous HANDS FREE measurement
Both Earth Resistance and Earth Resistivity can be measured
Can be used in 4 Terminal and 3 Terminal configurations
Display : 4 Digits EXTRA LARGE Backlit Dual LCD Display
Earth Resistance Range : 0 – 10/100/1000 Ohms
Accuracy : ±3% + 2d
Low Resistance Range : 0 – 200 k.Ohms
Accuracy : ±2%
DC Voltage : 0 – 1000V
Accuracy : ±0.8%
AC Voltage : 0 – 750V
Accuracy : ±1.2%
Complies with CE, CAT-III 1000V
Complete with Testing Kit
Re-Chargeable Battery and Battery Charger can be provided at extra cost
Test Leads: Yellow cable length: 905 cm (including connector- 6cm & clip- 8cm), Red cable length: 1500cm (including connector- 6cm & clip- 8cm), Green cable length: 506cm (including connector- 6cm & clip- 8cm)

Original price was: ₹10,665.00.Current price is: ₹6,950.00.

Discount Badge Auto

exclusive of GST

Product Overview
Reviews (0)

Description

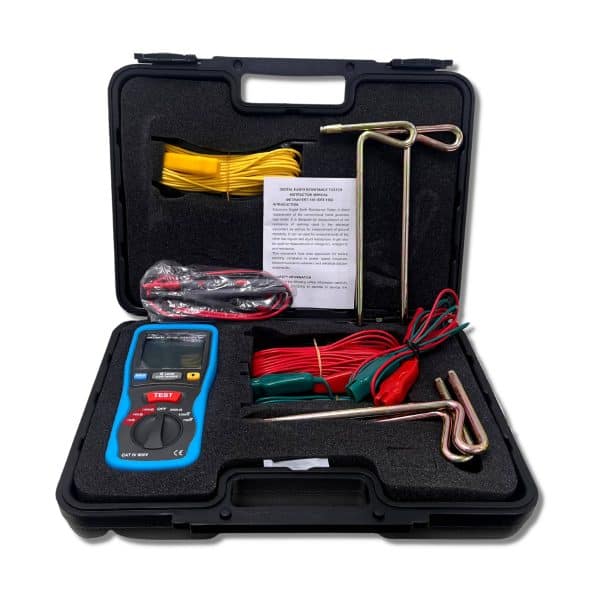

The Metravi ERT-1501 is an electronic, digital, earth resistance tester and a direct replacement or the conventional hand generator type tester for 0 – 10 / 100 / 1000Ω, and features 4 Terminals with a Testing Kit and Cables in a hard carrying case.

The device measures Earthing used in electrical equipment as well as Ground Resistivity. It can also be used for measurements of the other low regular and liquid resistances, as well as AC Voltage, DC Voltage and Resistance.

The tester finds wide application for testing earthing installations in industries like Power, Telecommunications and Electrical Traction Systems.

Rechargeable battery option is available at extra cost.
