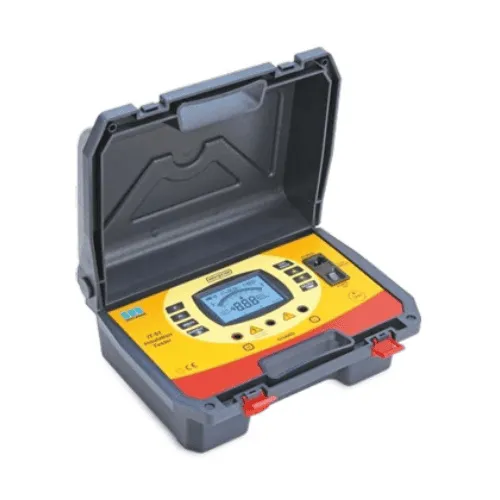

MOTWANE IT-51 5KV Digial Insulation Tester

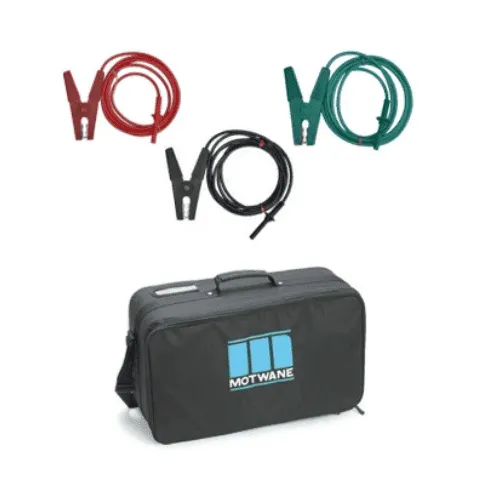

MOTWANE IT-51 5KV Digial Insulation Tester - Image 2
Sale!
MOTWANE IT-51 5KV Digial Insulation Tester
SKU: MOTWANE IT-51 Categories , , Brand:

Key Features

  • Selectable test voltage from 250V, 500V, 1000V,
    2500V, 5000V DC.
  • Insulation Resistance measurement up to 1TOHMS
  • Polarization Index measurement facility
  • Short circuit current < 1.4 mA. approx.
  • AC/DC voltage measurement up to 600V.
  • Two Programmable timer from 0 Sec to 99 minutes.
  • Liquid Crystal Display with pleasant white backlit.
  • Internal rechargeable Battery.
  • Safety – IP 54, CAT IV 600V and CE conformity.
  • Robust ABS body with self-carrying handle for easy
    Portability.
  • Automatic discharge for capacitive circuits.
  • Guard terminal to minimize the surface leakage.

Original price was: ₹118,500.00.Current price is: ₹82,950.00.

Original price was: ₹118,500.00.Current price is: ₹82,950.00.

Discount Badge Auto

exclusive of GST

Calibration Certificate from an authorized NABL Accredited Lab

If you have opted for the calibration service, our team will contact you to confirm the name and address to be included on the calibration certificate. Please note that the calibration process requires approximately 2–3 working days for completion and for the certificate to be issued by the laboratory.

Product price: ₹82,950.00
Total options:
Order total:
Get a Formal Quote

Description

The Motwane IT-51 is a microprocessor based Digital Insulation tester designed for testing of all types
electrical installation like transformers, switchgear, motors, generators and utility substation equipments. The
instrument automatically performs Polarization index by selecting PI mode. IT-51 has a large LCD white backlit
display, it shows leakage current in scrolling form along with IR value and PI value. It is rechargeable battery
operated and AC mains provision for battery charging.



Insulation testing of
All electrical rotating machineries & Equipment
HV & LV Transformers
HV & LV Switchgears
Cables & Insulators
All types of Electrical Installations

Additional information

Weight 10.000 kg
Dimensions 33 × 55 × 25 cm
