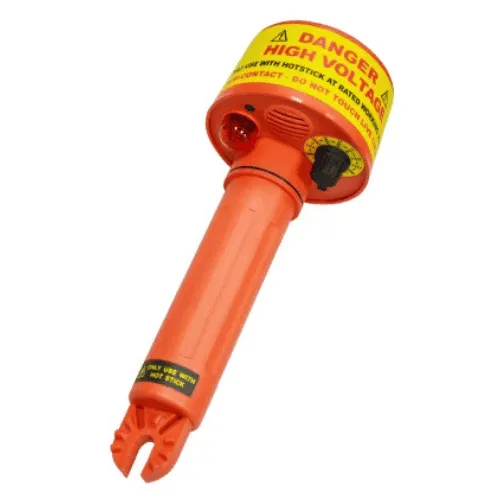

SEW High Voltage proximity Detector 275HP

SEW 275HP High Voltage Proximity Detector

SKU: SEW 275HP Categories All Collection, Voltage Detector Brand: SEW

Key Features

Protection class: IP65
8 voltage settings: 240Vac, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, and 275kV
Bright LED visual indication
Frequency range: 40~70Hz
Audio indication
Easy-to-prove method
Self-test selection
Uses 1.5V “C” × 3 batteries
High impact nylon casing
Non-contact detection by proximity
Compatible with most link sticks
Lightweight, robust, & compact
Suitable for indoor and outdoor use
Also detects low voltage on any system
Easy access to batteries
No special parts needed
Case height: 255mm / Case width: 96mm
Meets EN 61326-1 CISPR 11 EN 61000-4-2 EN 61000-4-3
Special voltage ranges available upon request
The maximum detection range can be 500kV

₹9,715.00

Discount Badge Auto

exclusive of GST

Description

The 275 HP is a high voltage proximity detector. It has eight voltage detection settings from 240Vac to 275kVac. The 275 HP consists of an internal pickup sensor plate, a sensitivity selector, and both visual and audio annunciators. Physical contact with electrical conductors is not necessary when testing for live lines since the 275 HP has a proximity sensor. It senses the radiated field which surrounds live conductors. Radiated field strength increases with voltage and decreases quickly with distance or earth shielding. (See “Limitations of use” paragraph in the instruction manual). Detecting distance of a 250Vac single live wire is approximately 10cm. With a
bunched neutral and earth cable, as in a flexible cable, the distance is reduced to 5cm.
